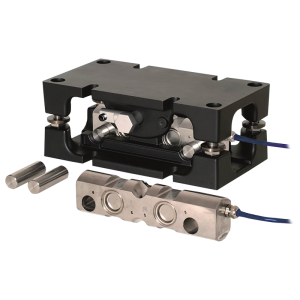

VC3500 Series: Double Shear Beam Load Cells
Vessel weighing problems solved simply and cost effectively. The VC3500 double shear beam load cell is designed particularly for large silos and tanks and it incorporates a high resistance to lift-off.The VC3500 load cell is also available with optional ATEX or IECEx certification and can be supplied as a special version with high temperature capability (for operation up to 150°C continuously).
Starting at £895.00 £1,074.00
Options
The VC3500 family of load cells is available in capacities from 2.000 kg to 200.000 kg. They are especially suitable for high capacity vessel weighing and feature a combined error specification of < ± 0.03%.
The critical sensor element is a fully welded double ended shear beam, manufactured from high tensile 17-4 PH stainless steel that is heat treated to give a high ultimate tensile strength. This heat treatment provides an extremely stable platform for the strain gauges, resulting in excellent accuracy and repeatability. In common with all Thames Side load cells, the strain gauged element is temperature compensated to ensure accuracy is maintained over a wide temperature range.
Stainless steel diaphragms are welded in position to provide total environmental sealing.
Due to the unique design of the VC3500, transverse and non-axial misalignment errors are minimised.
- Stainless steel load cell, fully welded and hermetically sealed to IP68 and IP69K
- High integral resistance to lift-off as standard
- Resistant to off-axis loading
- Low profile design
- Durable Polyurethane cable with high resistance to chemicals, UV radiation and cuts
- Allows for vessel expansion and contraction
- Options of ATEX or IECEx approval, Parylene coating and high temperature version on request
- Optional load cell output of 4-20mA on request
- Minimum load cell verification interval: Vmin = EMax / 15.000
- Maximum number of verification intervals: nLC = 6000
- Combined error: 0,008% of Full Scale Output (F.S.)
- Full Scale Output: 2 mV/V ± 0,1 %
- Temperature effect on zero: 0,0009% /°C
- Temperature effect on full scale output: 0,0007% /°C
- Compensated Temperature Range: -10°C/+40°C
- Operating Temperature Range: -20°C/+60°C
- Creep error after 30 minutes: 0,012% F.S.
- Maximum tolerated excitation voltage: 15 VDC
- Input Resistance: 385 ± 20 Ohm
- Output Resistance: 350 ± 5 Ohm
- Insulation Resistance: >5000 MOhm
- Safe Overload: 150% F.S.
- Ultimate Overload: 200% F.S.
- 6-wire shielded cable, 5m long, 5mm diameter.
| Class | GP |
|---|---|
| Max (kg) | 30t |
| ATEX Option | Optional |
| Cable Length | 20m |
| IP Rating | IP69K |
